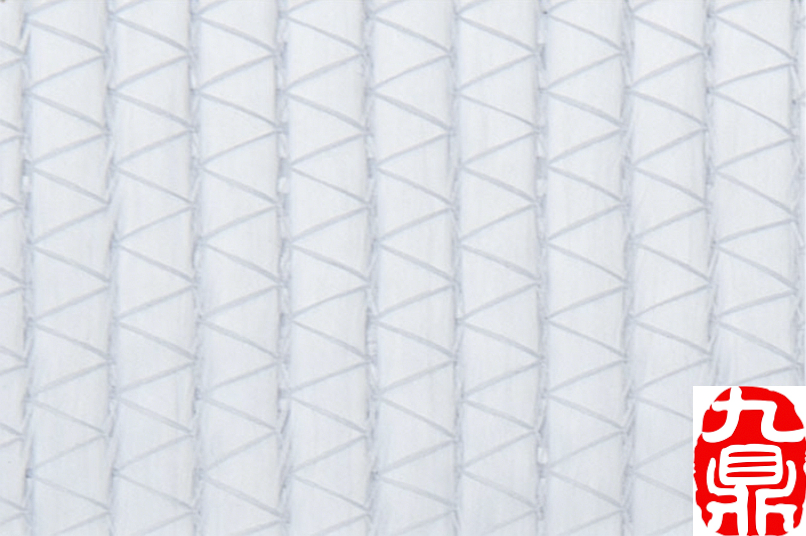

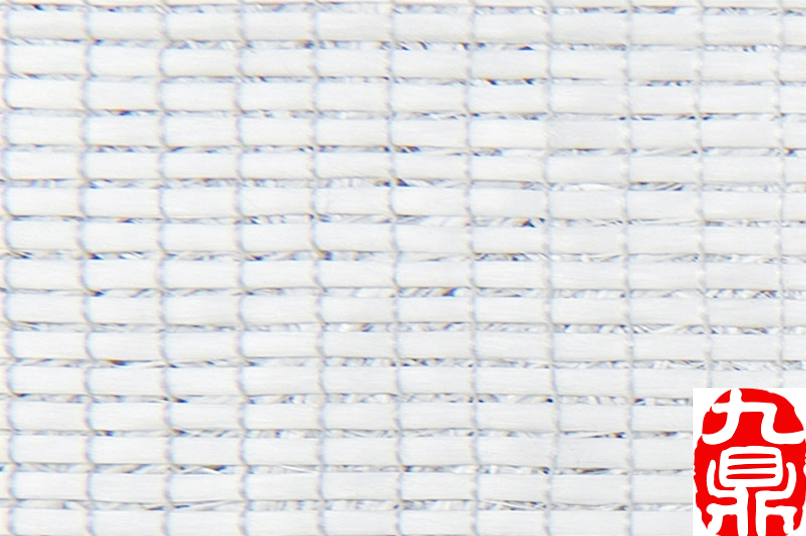

Glass fiber uniaxial woven fabric
Product Features
● Free of binders, compatible with multiple resin systems
● Provides high strength in a specific direction
● Simple processing technology, low cost
Common Specifications
| Grade | Total Areal Weight (g/m²) | 0° Layer (g/m²) | 90° Layer (g/m²) | Chopped Strand Mat Layer (g/m²) | Stitching Thread (g/m²) |
| EKUDL300 | 312 | 261 | 39 | / | 12 |
| EKUDL400 | 412 | 355 | 45 | / | 12 |
| EKUDL460 | 469.5 | 413 | 47 | / | 9.5 |
| EKUDL600A | 612 | 533 | 67 | / | 12 |
| EKUDL600 | 612 | 480 | 120 | / | 12 |
| EKUDL800 | 812 | 710 | 90 | / | 12 |
| EKUDL950 | 956 | 866 | 84 | / | 6 |
| EKUDL1000 | 1022 | 710 | / | 300 | 12 |
| EKUDL1200 | 1195 | 1134 | 55 | / | 6 |
| EKUDT125 | 126 | / | 120 | / | 6 |
| EKUDT300 | 309.5 | / | 300 | / | 9.5 |
| EKUDT500 | 509.5 | / | 250 | / | 9.5 |
| EKUDT600 | 609.5 | / | 600 | / | 9.5 |
| EKUDTM225/225 | 459.5 | / | 225 | 225 | 9.5 |
| EKUDTM300/300 | 609.5 | / | 300 | 300 | 9.5 |
| EKUDTM600/300 | 809.5 | / | 500 | 300 | 9.5 |
| EKUDTC600/300 | 909.5 | / | 600 | CFM300 | 9.5 |
Remarks
● Standard roll width: 127cm, minimum width: 5cm
● Standard roll weight: 50kg or 55kg
Packaging Method
The product is wound on a 3" paper tube, wrapped with plastic film, and individually packed in a carton. 16 or 12 rolls can be placed per pallet.
Unidirectional stitched fabrics are made by arranging non-twisted rovings in the 0° or 90° direction and then stitching them with a loop structure. They can be selected with or without a mat according to the application. Main applications: wind energy, shipbuilding, automotive, and sporting goods.
