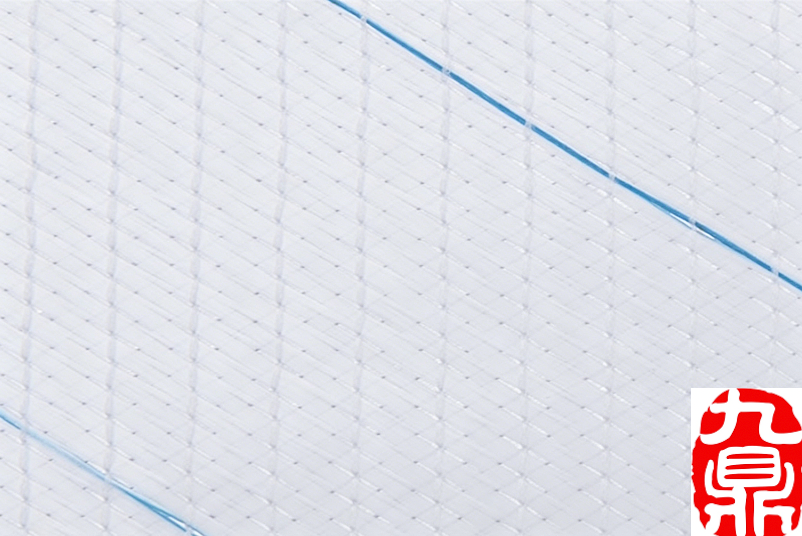

(+45 °, -45 °) glass fiber biaxial woven fabric
Product Features
● No binder, compatible with multiple resin systems
● Excellent mechanical performance
● Simple processing and low cost
Common Specifications
| Grade | Total Weight (g/m²) | +45° Layer (g/m²) | -45° Layer (g/m²) | Chopped Strand Layer (g/m²) | Stitching Thread (g/m²) |
| EKBX160 | 172 | 80 | 80 | / | 6 |
| EKBX240 | 233 | 106 | 106 | / | 6 |
| EKBX300 | 306.7 | 150.33 | 150.33 | / | 6 |
| EKBX400 | 407 | 200.5 | 200.5 | / | 6 |
| EKBX450 | 457 | 225.5 | 225.5 | / | 6 |
| EKBX600 | 607.2 | 300.6 | 300.6 | / | 6 |
| EKBX800 | 807.6 | 400.8 | 400.8 | / | 6 |
| EKBX1200 | 1208.6 | 601.3 | 601.3 | / | 6 |
| EKBXM400/225 | 632 | 200.5 | 200.5 | 225 | 6 |
| EKBXM600/225 | 832.2 | 300.6 | 300.6 | 225 | 6 |
| EKBXM800/450 | 1257.6 | 400.8 | 400.8 | 450 | 6 |
| EKBXM1208 | 682 | 200.5 | 200.5 | 275 | 6 |
| EKBXM1308 | 732 | 225.5 | 225.5 | 275 | 6 |
| EKBXM1708 | 882.2 | 300.6 | 300.6 | 275 | 6 |
| EKBXM2408 | 1082.6 | 400.8 | 400.8 | 275 | 6 |
Notes
● Standard width: 127 cm; Maximum width: 254 cm; Minimum width: 5 cm
● Standard roll weight: 50 kg or 55 kg
Packaging
Each roll is wound on a 3" paper tube, wrapped with plastic film, and packed in an individual carton. 16 or 12 cartons can be placed on one pallet.

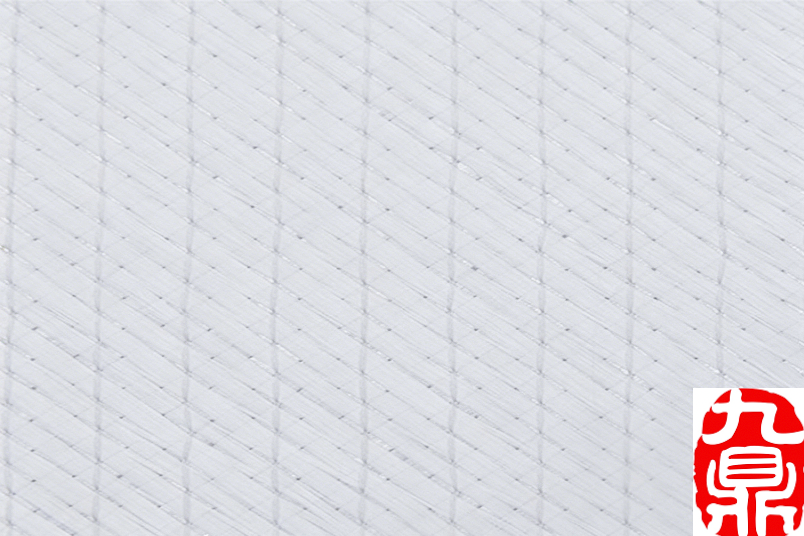

Biaxial Stitched Combo Mat (±45°)
Biaxial stitched combo mat is made by arranging direct roving in +45°/-45° directions and then stitching them together with a loop structure. It can be produced with or without a chopped strand mat layer according to application requirements.
It is mainly used in wind turbine blades, shipbuilding, automotive industry, and sporting goods.
