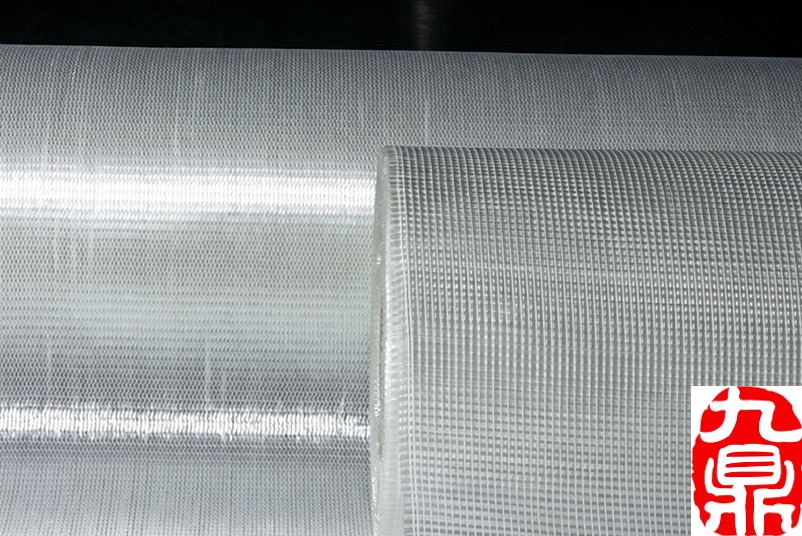

(0 °, 90 °) glass fiber biaxial woven fabric
Product Features
● No binder, compatible with multiple resin systems
● Excellent mechanical performance
● Simple processing and low cost
Common Specifications
| Grade | Total Weight (g/m²) | 0° Layer (g/m²) | 90° Layer (g/m²) | Chopped Strand Layer (g/m²) | Stitching Thread (g/m²) |
| EKLT400 | 409.5 | 202 | 198 | / | 9.5 |
| EKLT600 | 609.5 | 330 | 270 | / | 9.5 |
| EKLT800 | 809.5 | 412.5 | 387.5 | / | 9.5 |
| EKLT1200 | 1209.5 | 605 | 595 | / | 9.5 |
| EKLTM400/200 | 609.5 | 202 | 198 | 200 | 9.5 |
| EKLTM600/300 | 909.5 | 330 | 270 | 300 | 9.5 |
| EKLTM600/450 | 1059.5 | 330 | 270 | 450 | 9.5 |
| EKLTM800/250 | 1059.5 | 412.5 | 387.5 | 250 | 9.5 |
| EKLTM800/300 | 1109.5 | 412.5 | 387.5 | 300 | 9.5 |
| EKLTM800/450 | 1259.5 | 412.5 | 387.5 | 450 | 9.5 |
| EKLTM1608 | 835.5 | 275 | 276 | 275 | 9.5 |
| EKLTM1808 | 894.5 | 330 | 280 | 275 | 9.5 |
| EKLTM2408 | 1092 | 412.5 | 395 | 275 | 9.5 |
| EKLTM2415 | 1274.7 | 412.5 | 395 | 457.7 | 9.5 |
| EKLTM3208 | 1381.5 | 605 | 492 | 275 | 9.5 |
Notes
● Standard width: 120cm, 125cm; Max width: 260cm; Min width: 10cm
● Standard roll weight: 55kg or 60kg
Packaging
Each roll is wound on a 3-inch paper tube, wrapped with plastic film, and packed in an individual carton. 16 or 12 cartons can be placed on one pallet.
Biaxial Stitched Combo Mat (0°/90°)

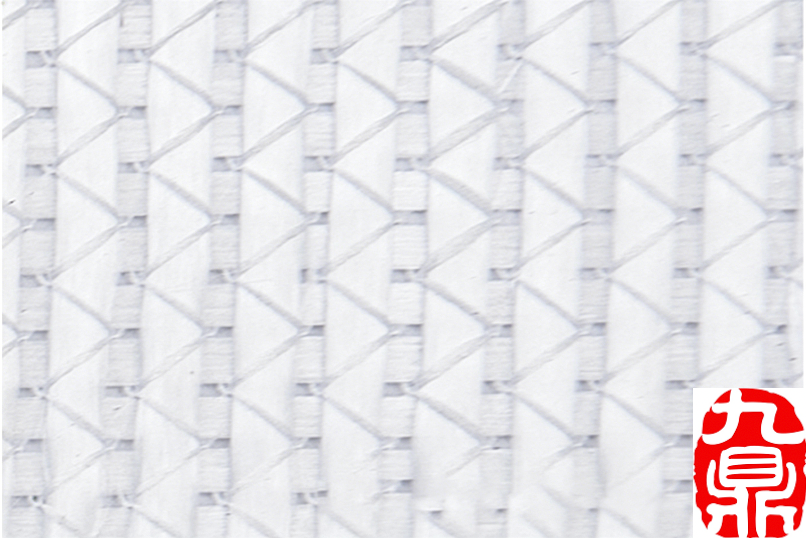

Biaxial stitched combo mat is made by arranging direct roving in 0°/90° directions and then stitching them together with a loop structure. It can be produced with or without a chopped strand mat layer according to application requirements.
It is mainly used in wind turbine blades, shipbuilding, automotive industry, and sporting goods.
