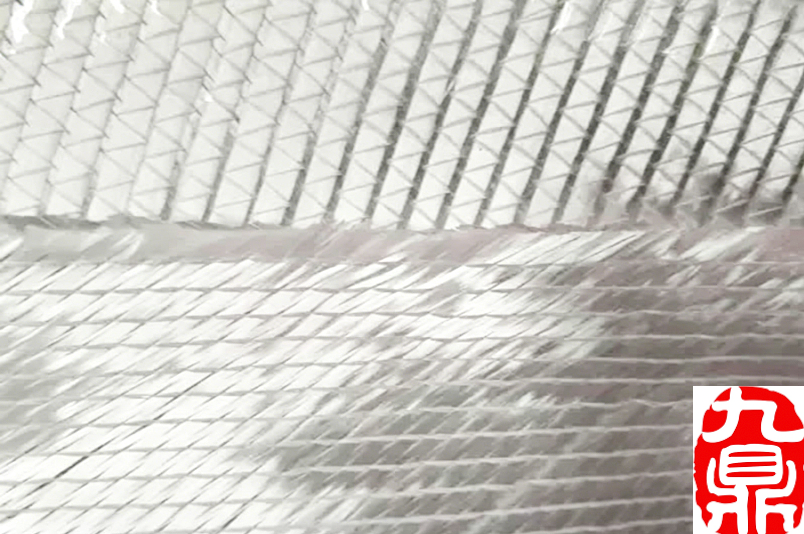

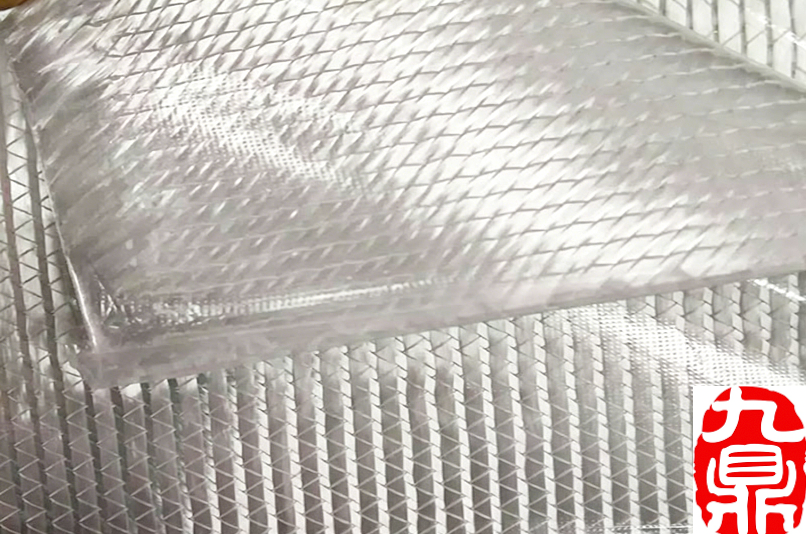

Glass fiber four axis woven fabric
Product Features
● Free of binders, compatible with multiple resin systems
● Excellent mechanical properties
● Simple processing technology, low cost
Common Specifications
| Grade | Total Areal Weight (g/m²) | 0° Layer (g/m²) | +45° Layer (g/m²) | 90° Layer (g/m²) | -45° Layer (g/m²) | Chopped Strand Mat Layer (g/m²) | Stitching Thread (g/m²) |
| EKQX600 | 601.4 | 144.7 | 150.4 | 150 | 150.4 | / | 6 |
| EKQX800 | 823.8 | 216 | 200.5 | 200.8 | 200.5 | / | 6 |
| EKQX1000 | 954 | 216 | 248 | 236 | 248 | / | 6 |
| EKQX1150 | 1178.7 | 294 | 300.6 | 283.5 | 300.6 | / | 6 |
| EKQX1200 | 1201.2 | 294 | 300.6 | 300 | 300.6 | / | 6 |
| EKQX1600 | 1620 | 434 | 308 | 564 | 308 | / | 6 |
Remarks
● Standard roll width: 127cm, minimum width: 5cm
● Standard roll weight: 50kg or 55kg
Packaging Method
The product is wound on a 3" paper tube, wrapped with plastic film, and individually packed in a carton. 16 or 12 rolls can be placed per pallet.
Quadraxial stitched fabrics are made by arranging non-twisted rovings in the 0°/+45°/90°/-45° directions and then stitching them with a loop structure. They can be selected with or without a mat according to the application. Main applications: wind turbine blades, shipbuilding, automotive, and sporting goods.
