Electronic grade fiberglass cloth
Common Specifications
| No. | Model | Warp & Weft Density | Linear Density (Warp) | Linear Density (Weft) | Weight (g/m²) | Width (mm) | Length (m) |
| 1 | 106 | 56*56 | ECD900 | ECD900 | 25 | 1270 | 2500 |
| 2 | 1080 | 60*47 | ECD450 | ECD450 | 47 | 1270 | 2500 |
| 3 | 2116 | 61*57 | ECE225 | ECE225 | 104 | 1090, 1270, 1305 | 2500 |
| 4 | 2165 | 24*21 | ECE225 | G150 | 120 | 1090, 1255, 1270 | 2500 |
| 5 | 7628 | 44*31 | G75 | G75 | 203 | 1090, 1100, 1255, 1270, 1305 | 2500 |
| 6 | 7630 | 44*32 | G67 | G67 | 224 | 1270 | 2500 |
| 7 | 7637 | 44*36 | G67 | G67 | 235 | 1095, 1185, 1270, 1305 | 2500 |
| 8 | 7642 | 42*20 | G75 | G75*2 | 227 | 1270 | 2500 |

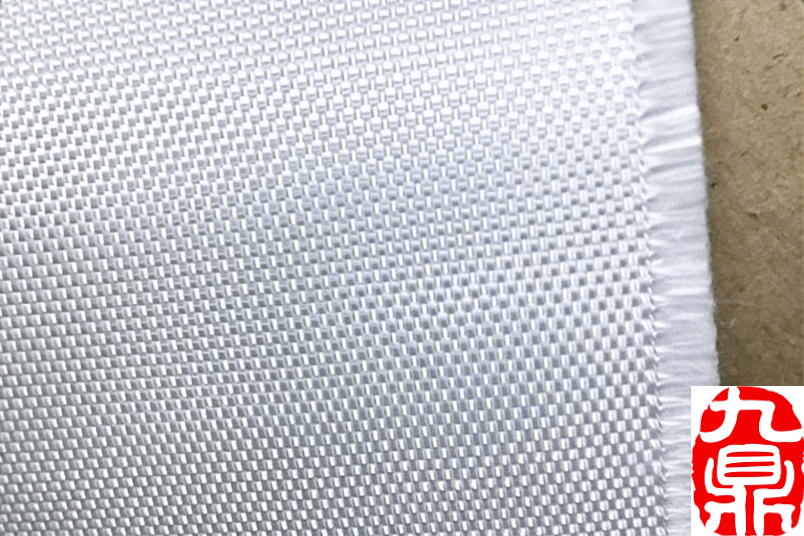

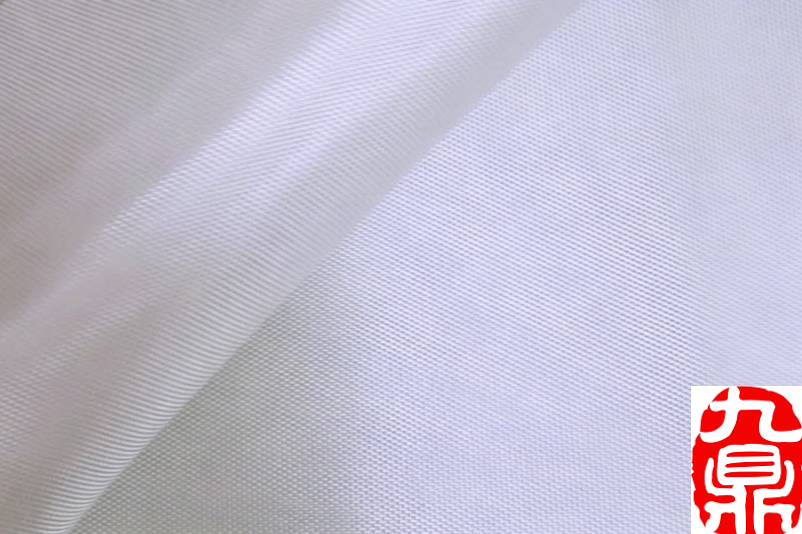

This product is woven from glass fiber yarns, processed by heat cleaning to remove the sizing on the fabric surface, and then treated with a chemical coupling agent. It is mainly used for PCB boards, electrical insulation products, and sporting goods.
