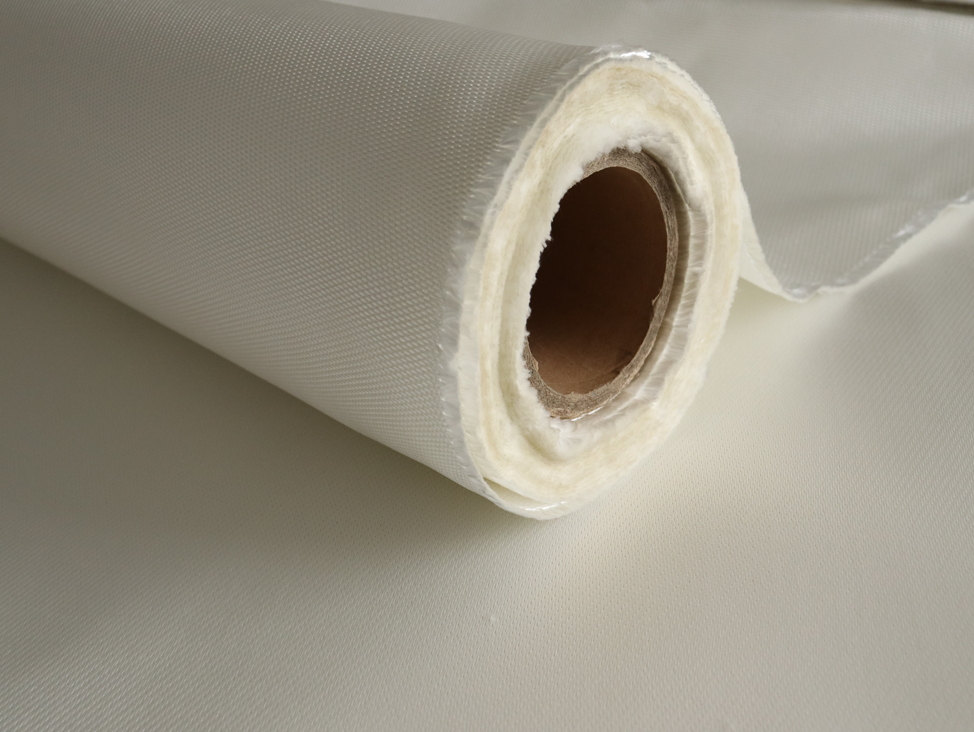

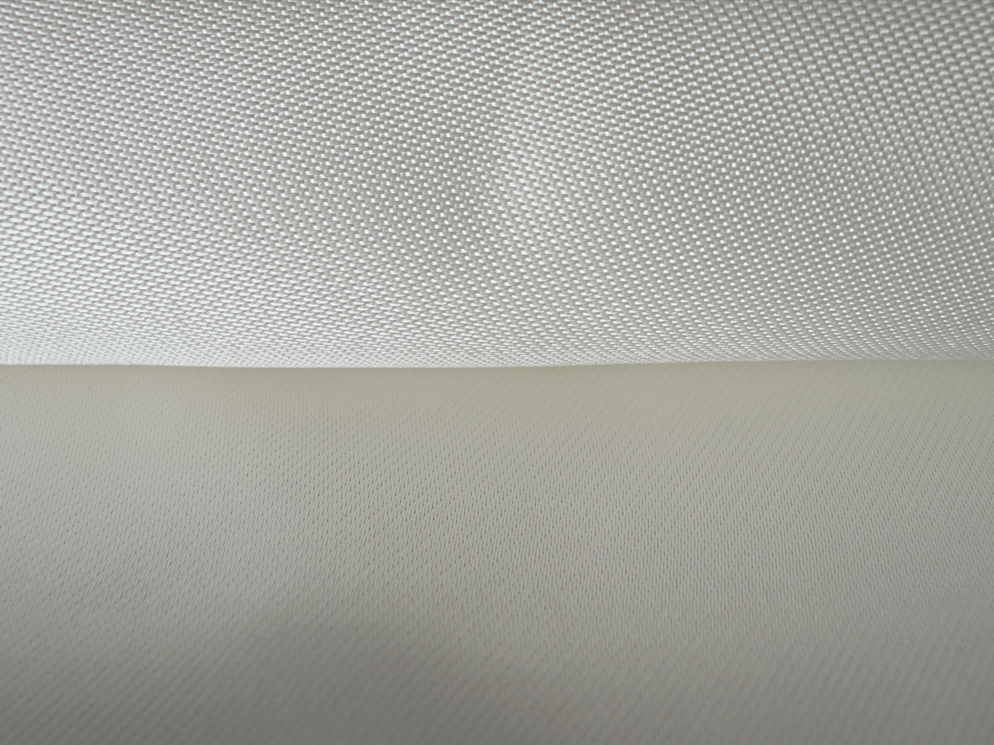

High Silica Satin Weave Cloth
Application
The cloth is mainly used for high temperature heat insulation, heat preservation and protection, sealing, fireproof materials etc, such as welding curtains, fire shutters, fire blankets, fireproof clothing, heat insulation curtains, high temperature soft joints, steam pipeline heat insulation, metallurgical casting insulation protection, kiin and high temperature industrial fur- nace protective cover, wire and cable fire insulation, etc.
Widely used in fire protection and heat insulation under high temperature environment.
Specifications
| Spec | Mass | Density (ends/25mm) | Thickness | Tensile Strength (N/25mm) | Heat Loss | |||
| (g/m²) | (mm) | SiO₂ | (%) | |||||
| Warp | Weft | Warp | Weft | (%) | ||||
| HSGW-300 | 300±30 | 37±3 | 30±3 | 0.32±0.03 | ≥1000 | ≥800 | ≥96 | ≤10 |
| HSGW-400 | 420±50 | 32±3 | 28±3 | 0.40±0.039 | ≥800 | ≥700 | ≥96 | ≤10 |
| HSGW-600 | 600±50 | 50±3 | 36±3 | 0.58±0.058 | ≥1400 | ≥1000 | ≥96 | ≤10 |
| HSGW-900 | 900±100 | 37.5±3 | 30±3 | 0.82±0.082 | ≥2200 | ≥1800 | ≥96 | ≤10 |
| HSGW-1000 | 1000±100 | 40±3 | 33.75±3 | 0.95±0.095 | ≥2500 | ≥2000 | ≥96 | ≤10 |
| HSGW-1100 | 1100±100 | 48±3 | 32±3 | 1.00±0.10 | ≥2800 | ≥2500 | ≥96 | ≤10 |
| HSGW-1350 | 1350±100 | 40±3 | 32.5±3 | 1.20±0.12 | ≥3000 | ≥2500 | ≥96 | ≤10 |
| HSGW-400(preshrunk） | 420±50 | 33±3 | 29±3 | 0.45±0.045 | ≥350 | ≥300 | ≥96 | ≤2 |
| HSGW-600(preshrunk) | 600±50 | 52±3 | 36±3 | 0.65±0.10 | ≥400 | ≥300 | ≥96 | ≤2 |
| HSGW-1100(preshrunk) | 1100±100 | 50±3 | 32±3 | 1.05±0.10 | ≥700 | ≥400 | ≥96 | ≤2 |
| HSGW-1350(preshrunk) | 1350±100 | 52±3 | 28±3 | 1.20±0.12 | ≥750 | ≥400 | ≥96 | ≤2 |
