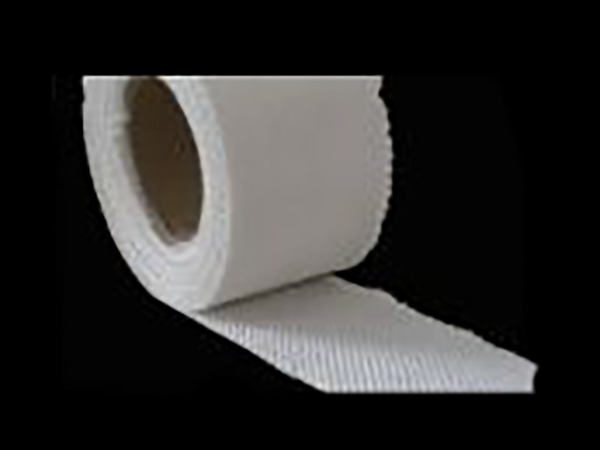

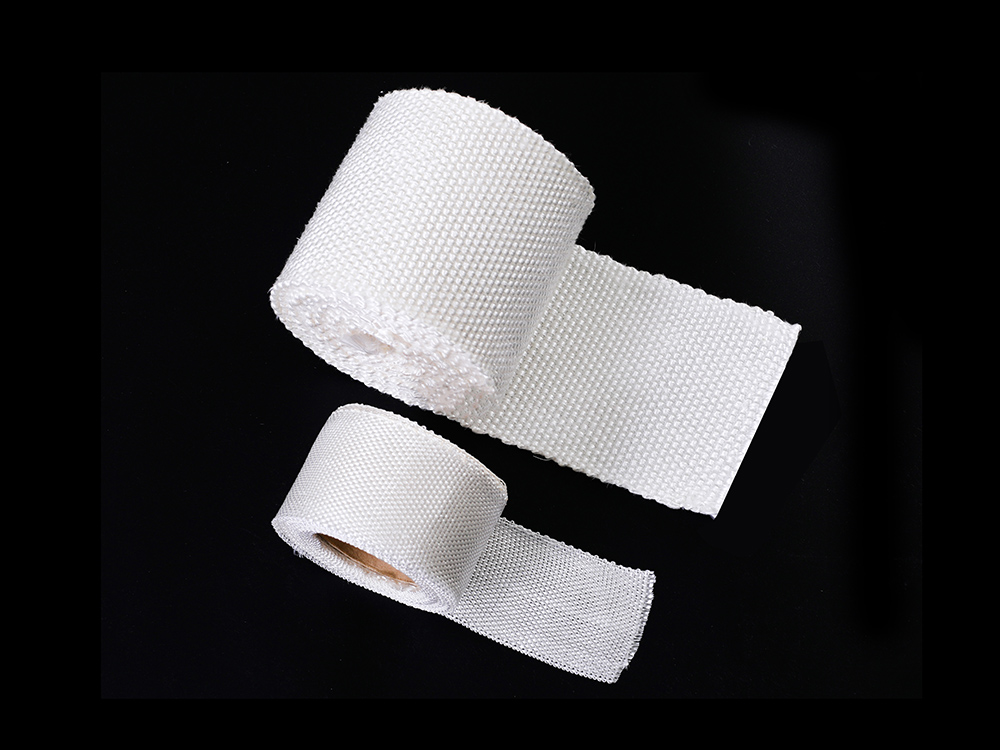

High Silica glassfiber Tape
Application
High silica tape is a ribbon refractory product woven from high silica glass fiber, mainly used for bundling and wrapping under high temperature insulation, sealing, reinforcement, insulation and other working conditions.
Specifications
| Spec | Thickness | Width | Density | Length | SiO₂ | Temperature | |
| (mm) | (cm) | (ends/25mm) | (m) | (%) | (℃) | ||
| warp | weft | ||||||
| HT300 | 0.3±0.1 | 5-20 | 20.0±3.0 | 25.0±3.0 | 30~50 | ≥96 | 1000 |
| HT500 | 0.5±0.1 | 5-20 | 32.5±3.0 | 30.0±3.0 | 30~50 | ≥96 | 1000 |
| HT600 | 0.6±0.1 | 5-20 | 32.5±3.0 | 30.0±3.0 | 30~50 | ≥96 | 1000 |
| HT700 | 0.7±0.2 | 5-20 | 32.5±3.0 | 25.0±3.0 | 30~50 | ≥96 | 1000 |
| HT2000(Texturized) | 2.0±0.5 | 5-15 | 14.0±1.0 | 7.0±1.0 | 30 | ≥96 | 1000 |
| HT3000(Texturized) | 3.0±0.5 | 5-15 | 11.0±1.0 | 5.0±1.0 | 30 | ≥96 | 1000 |
| HT5000(Texturized) | 5.0±1.0 | 5-15 | 22.0±1.0 | 5.0±1.0 | 30 | ≥96 | 1000 |
